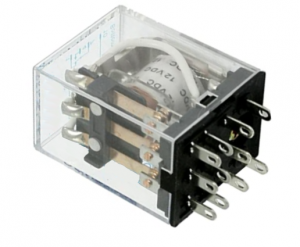

WLRL-53 12 VDC 11 Pin Relay (3NO)
RL Series Relays & Sockets
| Wide Aplication Range | ||||
| Solid Quality | ||||
| International Standart Design | ||||
|
Technical Specifications:
|
||||
| Mechanical Life | : 10.000.000 Operations | |||
| Electrical Life | : 1.000.000 Operations at 80°C | |||
| Operation Temperature | : -40/.. +80°C | |||
| Operation Voltage (Ue) | : 12vDC | |||
| Maximum Current (ithe) | : 10A | |||
| Operation Current (le) | : 6A | |||
| Isolated Voltage | : 12vDC | |||
| Operation Frequency (f) | : 50 Hz | |||
| Contact Material | : Ag/Ni | |||
| Utilization Category | : AC15 | |||
| Coil Rates:
|
||||
|
Protection; |
||||
| Operation Humidty
Enclosure Rating Certification Insulation Resistance Contact Resistance Contact Arrangment
|
: <% 85
: IP67 : CE/UR : 1000mΩ (at 500VDC) : 30mΩ (at 1A/6VDC) : Three Pole, Double Throw (DPDT)
|
|||
|
Description: |
||||
| • 3 pole 6 A • 2, 3 or 4 CO contacts • DC- or AC-coil • Switching performance up to 3000 VA • Relay height 29 mm • Cadmium free contact material • Mechanical indicator, optional LED and protection diode • Manual test tab, optionally lockable |
||||
Dimensions:
