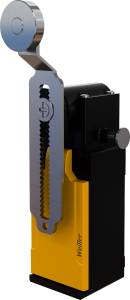

XCK-SEM122RE Limit Switch 1NO+1NC
| XCK SERIES LIMIT SWITCH | ||||
| Limit Switches, Position Schalters, Safety Switches | ||||
| Special Design | ||||
| Solid Quality | ||||
| Made in TURKEY | ||||
| Technical Specifications | ||||
| Mechanical Life | : 10.000.000 Operations | |||
| Electrical Life | : 1.000.000 Operations | |||
| Operation Temperature | : -5../.. +40°C | |||
| Operation Voltage | : 240 VAC | |||
| Maximum Current (ithe) | : 10A | |||
| Operation Current (le) | : 3A | |||
| Isolated Voltage | : 250V | |||
| Operation Frequency (f) | : 50 Hz | |||
| Contact Material | : Ag/Cu | |||
| Utilization Category | : AC15 | |||
| Protection | : IP65 | |||
| Cable Diameter | : 0,75mm, 1mm, 1.50mm | |||
| Standarts | : EN 60947-5-1 | |||
| Certification | : CE | |||
| Activation Type
Head Type |
: Snap Action
: Adjustable |
Metal Arm |
With Reset |
|
| Description | ||||
| Plastic Cover | ||||
| Ergonomic Design | ||||
| Multiple options for head types | ||||
| High mechanical durability | ||||
| 1NO+1NC Contact Option | ||||
| PG-13.5 or M20x1.5 Cable Gland Connection | ||||
| M3 Terminals | ||||
| Easy install | ||||
| Multiple gaskets for better protection | ||||
| Internationel Standart Case | ||||
